“Austhai Geophysical Consultants
Is The Authorized Agent For Geomative Products.
Induced Polarization (IP Instrument)
We are sales agent of high-quality equipment and professional sale support with expertise in the use of a wide range of geophysical equipment, Combining our survey experience with top-rated instruments provides the best value possible for our customers.
Geomative has a high-quality R&D team and has proprietary intellectual property rights over the geological and geophysical equipment developed, produced, and sold. The products cover electrical resistivity meter instruments, high-power IP, Ground Penetrating Radar to provide customers with high-quality scientific research equipment and technical services.
Geomative products are focusing on resistivity and IP method, which can be widely applied to resource prospecting, civil geological engineering, environment detecting and archaeologies.
Geomative Products List
- GD-10 Electrical Resistivity Meter
- GD-20 Electrical Resistivity Meter
- Geopro-10 Ground Penetrating Radar host
- GDR Antenna Ground Penetrating Radar
Geomative Products List
GD-10 Electrical Resistivity Meter Systems
GD-20 Electrical Resistivity Meter Systems
Geopro-10 Ground Penetrating Radar host
GDR-Ground Penetrating Radar Antenna
Electrical Resistivity System
Major Applications
- Groundwater and mining resources exploration
- Underground contamination detection
- Urban engineering exploration
- Cavity exploration, Bedrock detection for pile foundation
- Seawater intrusion detection
- Dam seepage and leakage detection
- Geological mapping
- Archeological studies
- Real-time monitoring of landslides, tailings dams
- Sediment detection of river, lake, and reservoir
- Borehole / Cross-hole investigation

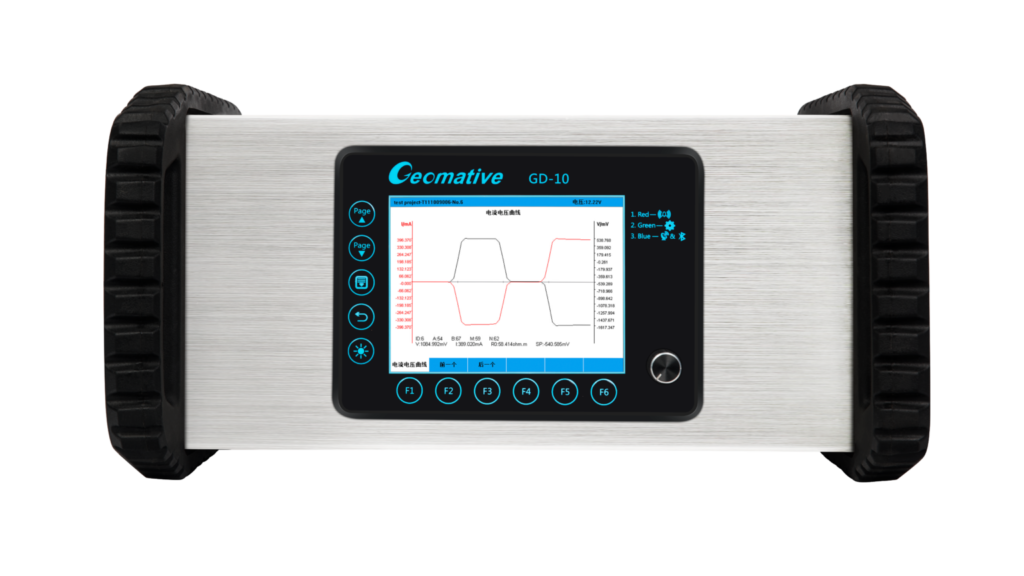

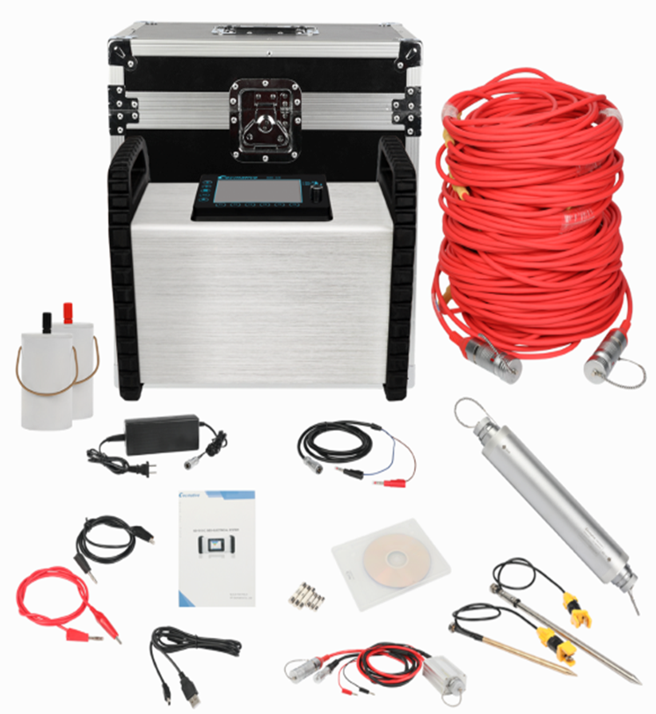

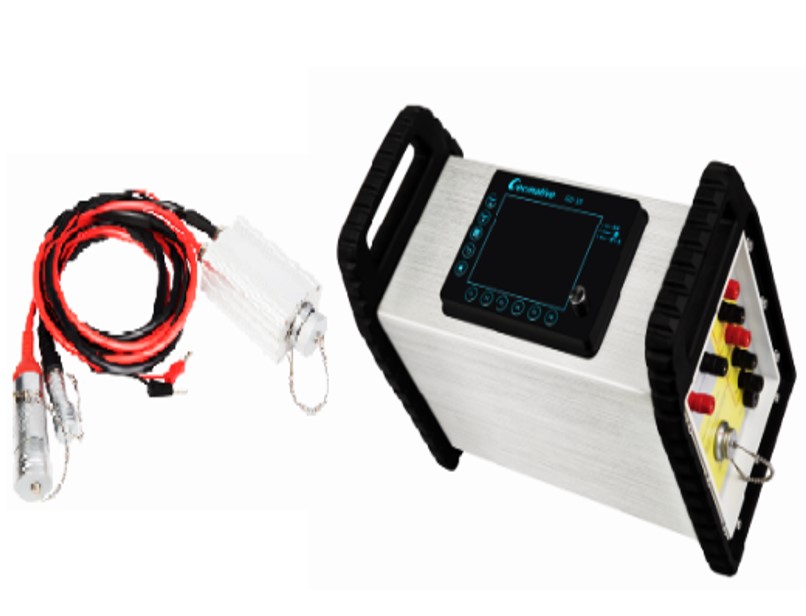

GD-10 Electrical Resistivity Meter
GD-10 is developed based on the latest digital and analog circuitry technique, making it the world leading multi-functional direct current (DC) method instrument.Geomative integrated the advantages from both conventional centralized cabling system and distributed cabling system. We combine the low cost and high reliability from the former and the high efficiency with infinite expand-ability of the cable from the latter system. So a sectional centralized ERT technique is established by Geomative, which attained both the rapidness of distributed cabling and the reliability of centralized cabling.
Features:
- Resistivity automatic stacking and support single point
- Flexible, efficient and convenient wiring
- Plenty of arrays and custom scripts
- Multi-dimensional data display
- The unique segmented centralized mode of GD-10 system
- Automatic stacking to improve data quality
Models
| Basic | Senior | Advanced | Supreme2D/3D | Supreme2D+/3D+ | |
|---|---|---|---|---|---|
| Electrical resistivity sounding | ✔ | ✔ | ✔ | ||
| Upgrade-able firmware | ✔ | ✔ | |||
| IP sounding | ✔ | ✔ | ✔ | ✔ | |
| SP | ✔ | ✔ | ✔ | ✔ | |
| Maximum Tx of 1200V*6A | ✔ | ✔ | ✔ | ✔ | |
| Centralized ERT 2D/3D | ✔ | ||||
| Electrical resistivity sounding,2D/3D Profiling | ✔ | ✔ | |||
| Distributed ERT (single takeout cabling) | ✔ | ||||
| Distributed ERT (Dual takeout cabling) | ✔ |
Specifications:
| GD-10 (Senior, Advanced、Supreme2D/3D、Supreme2d+/3D+) | GD-10 Basic | |
|---|---|---|
| General Specifications | ||
| Operating Temperature | -10℃/+50℃ | -10℃/+50℃ |
| Storage Temperature | -10℃/+60℃ | -10℃/+60℃ |
| Internal Battery | 16.8V Lithium Battery | 16.8V Lithium Battery |
| Weight | 8kg | 7.5kg |
| Dimensions | 39*20*29cm | 39*20*29cm |
| Screen Display | 5.7″ full Color LCD 640*480 | 5.7″ full Color LCD 640*480 |
| Transmitter Specifications | ||
| Protection Features | IP65,with protections against over-current, over- voltage, short circuit, high temperature | IP65,with protections against over-current, over- voltage, short circuit, high temperature |
| Maximum Power(W) | 7200W | 1200W |
| Maximum Voltage(V) | 1200V | 600V |
| Maximum Current(C) | 6A | 2A |
| Current Resolution | better than 0.3% | better than 0.3% |
| Pulse Width | 0.5、1s、2s、4s、8s、16s、32s | 0.5、1s、2s、4s、8s、16s、32s |
| Receiver Specifications | ||
| A/D Conversion Rate | 24 bit | 24 bit |
| Noise Rejection | ≥120dB | ≥120dB |
| Voltage Range | ±24V | ±24V |
| SP Compensation | ±10V | ±10V |
| Voltage Resolution | 0.3%±1uV | 0.3%±1uV |
| Channel | 1 | 1 |

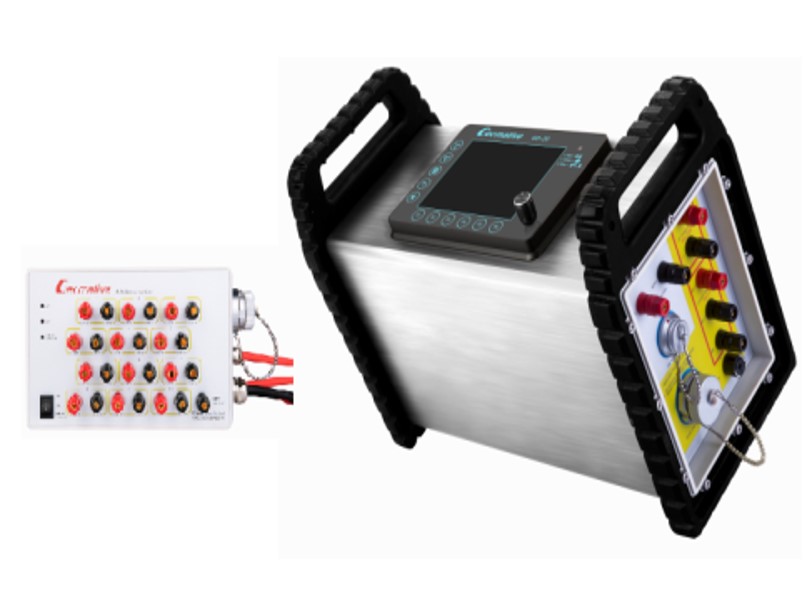

GD-20 Electrical Resistivity Meter
GD-20 is a brand-new multi-channel electrical method system, independent 5/12 channel design, It can measure up to 10 points at the same time, greatly improving the efficiency on site. GD20 can be used for self-electricity, apparent resistivity and IP testing. Compared with single-channel equipment, the multi-channel average test efficiency is increased by 2-3 times, greatly shortening the field construction period.
The GD-20 system is portable and has its own memory to store data. Multi-channel conversion box Supporting VES, ERT, and N-∞ settings. VES can test 12 sets of sounding points in the meantime , ERT test can meets 10-channel data acquisition, N-∞ gear meets the application of N-connected infinity device, and independent 10-channel design maximizes test efficiency.
Features:
- Complete DC solution
- Supporting Resistivity automatic iteration and single point testing, can improve data quality and testing efficiency
- Flexible, efficient and convenient layout, double connection method can twice enlarge the current threshold
- Powerful and efficient rolling and 3D testing and pseudo 3D scanning
- Rich devices and support custom scripts
- Multi-dimensional data display, all problems, on-site discovery, real-time positioning
Models
| GD-20 senior | Supreme2D/3D | Supreme2D+/3D+ | |
|---|---|---|---|
| Electrical resistivity sounding | ✔ | ||
| IP sounding | ✔ | ✔ | ✔ |
| SP | ✔ | ✔ | ✔ |
| Maximum Power (W) 1200V*6A | ✔ | ✔ | ✔ |
| Upgradeable hardware | ✔ | ||
| Electrical resistivity sounding, 2D/ 3D Profiling | ✔ | ✔ | |
| Distributed ERT (single takeout cabling) | ✔ | ||
| Distributed ERT (Dual takeout cabling) | ✔ |
Specifications:
| GD-20 (Senior, Supreme2D/3D, Supreme2d+/3D+) | |
|---|---|
| General Specifications | |
| Operating Temperature | -10℃/+50℃ |
| Storage Temperature | -10℃/+60℃ |
| Internal Battery | 16.8V Lithium Battery |
| Weight | 8.5kg |
| Dimensions | 39*20*29cm |
| Screen Display | 5.7″ full Color LCD 640*480 |
| Transmitter Specifications | |
| Protection Features | IP65,with protections against over-current, over- voltage, short circuit, high temperature |
| Maximum Power(W) | 7200W |
| Maximum Voltage(V) | 1200V |
| Maximum Current(C) | 6A |
| Current Resolution | better than 0.1% |
| Pulse Width: | 0.5、1s、2s、4s、8s、16s、32s |
| Receiver Specifications | |
| A/D Conversion Rate | 24 bit |
| Noise Rejection | ≥120dB |
| Voltage Range | ±24V |
| SP Compensation | ±10V |
| Voltage Resolution | 0.1%±1uV |
| Channel | 5,12 |
Comparison Between GD-10 And GD-20:
Model: GD-10
- Multi-functional ERT instrument provides multiple array solutions to satisfy various scenarios, application, and budget requirements.
- Single-channel
- Electrical resistivity and IP sounding
- SP survey and continuous monitoring
- 2D/3D ERT and IP profiling
- High-powered IP and Mid-gradient profiling mode
- Support borehole ERT and online ERT monitoring
- Support both centralized and distributed ERT survey
- Upgradable firmware, non-expandable survey channels
Model: GD-20
- Multi-functional and multi-channel ERT instrument. Similar to all functionalities and performance of GD-10, with higher efficiency and shorter survey duration.
- Up to 12 individual channels
- Electrical resistivity and IP sounding
- SP survey and continuous monitoring
- 2D/3D ERT and IP profiling
- High-powered IP and Mid-gradient profiling mode
- Support borehole ERT and online ERT monitoring
- Support marine survey, simultaneous measurement with multiple instruments
- Support distributed ERT survey
- Upgradable firmware through remote support, survey channels are expandable through factory upgrade
- 5-channels and 12-channels model available
Ground Penetrating Radar
Major Applications
Geology survey
Rock melt detection, frozen earth detection and stratum form detection
Engineering

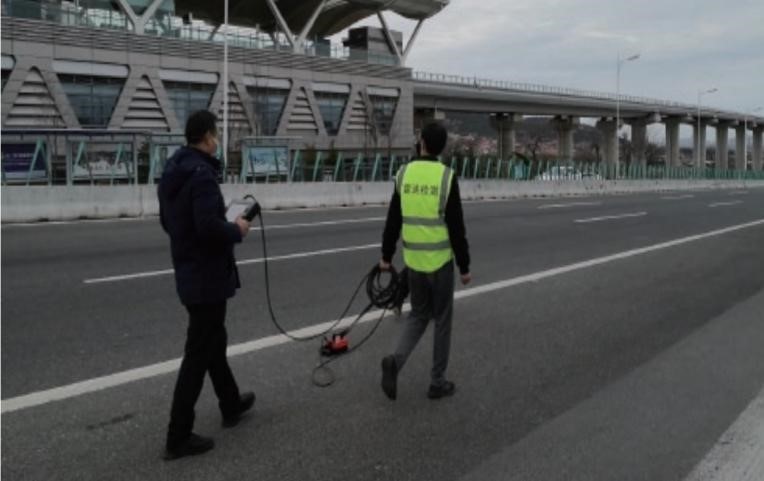

Buried Objects, Voids, and Singularities Detection. Structure layer thickness inspection, locating buried structures and utility lines.
Military
UXO detection and tunnels detection Military: UXO detection, underground defense works detection.
Archaeology
detect and map subsurface archaeological artifacts, features, and patterning.
Burial sites
GPR is used by criminologists, historians, and archaeologists to search burial sites.

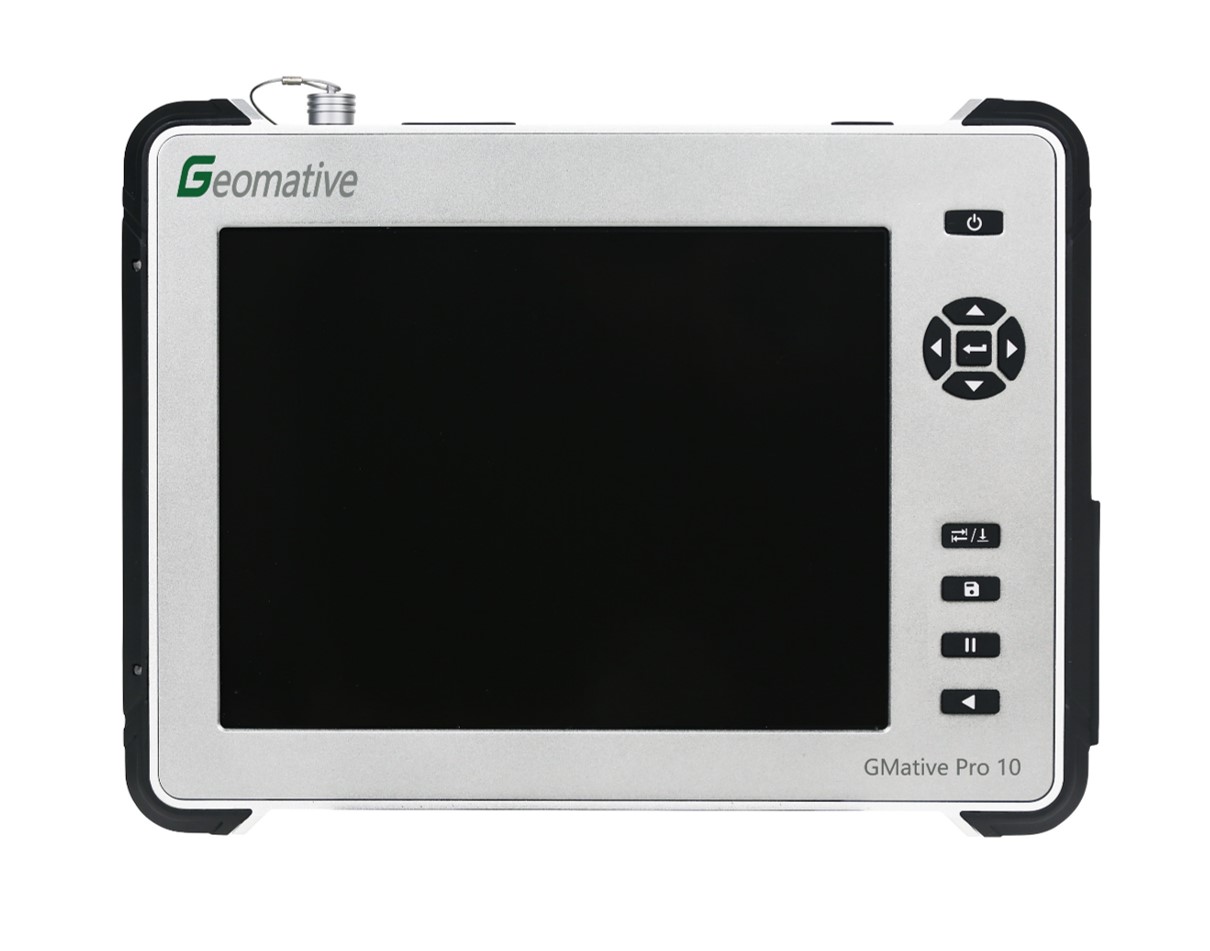

Geopro-10 Radar Host
Geopro-10 is a portable, intelligent, high-performance, fully digital ground penetrating radar host, compatible with the full range of GDR antennas, supporting most GPS devices, a stable and reliable Chinese/English acquisition system, based on Windows, and meeting operational requirements
Features:
- Intelligent host, automatic identification of antenna type, automatic configuration of radar parameters
- High acquisition efficiency
- Simple operation and good data quality
- Easy to carry
- Complete Chinese/English operation interface and rich real-time processing functions
- Support external GPS to add geographic coordinate information to radar data
- Digital signal transmission is adopted between the host and the antenna, with strong anti-interference ability and higher data signal-noise ratio
Models And Specifications:
| Geopro-10 Radar host Specifications | |
|---|---|
| General Specifications | |
| Antenna | Compatible with all GDR antennas |
| Number of Channels | 1 channel |
| Memory Space | 128G |
| Global Positioning System | (RS232 series), support GPGGA data format |
| Power Supply | Built-in lithium battery（NI2040） |
| Data Format | East Germany (SRD) |
| Analog-Digital Adapter Byte | 16 bits |
| Maximum scanning Speed | 512 scans/s (the number of sampling points is 512） |
| Sampling Points | 256、512、1024、2048、4096、8192 |
| Maximum Transmit Frequency | 800kHz |
| Data Transmission | USB 3.0 |
| Master | 8-pin aviation socket |
| Operating Temperature | -20℃~+50℃ |
| Storage Temperature | -40℃~+60℃ |
| Working Humidity | <95%, not condensed water |
| Protection Level | IP65 |
| Volume | 314mm×238mm×64mm |
| Weight | 3kg (without battery) |
GDR Series Antenna
GDR series antenna of Geomative CO., LTD has various types, complete function and wide covered frequency range, center frequency 100MHz~2500MHz, these able to meet user’s different requirements under multiply detection scenes
Features:
- wide covered frequency range
- center frequency 100MHz~2500MHz
- complete function
Models And Specifications:
| Mammoth2500 ground coupling antenna | |||
|---|---|---|---|
| Volume | 250mm×170mm×150mm | Weight | 1.3kg |
| Center frequency | 2500MHz | The max launch frequency | 400kHz |
| Depth range | 0.1~0.3m | Coupling method | Ground coupling |
| Application | Building structure detection, road surface layer detection and bridge engineering, etc. | ||

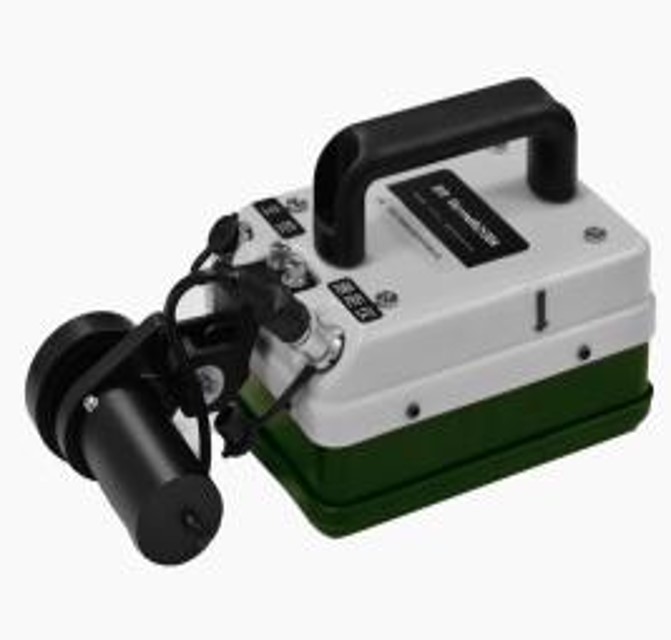

| Mammoth1600 ground coupling antenna | |||
|---|---|---|---|
| Volume | 250mm×170mm×150mm | Weight | 1.3kg |
| Center frequency | 1600MHz | The max launch frequency | 400kHz |
| Depth range | 0.2~0.5m | Coupling method | Ground coupling |
| Application | Building structure detection, road surface layer detection and bridge engineering, etc. | ||

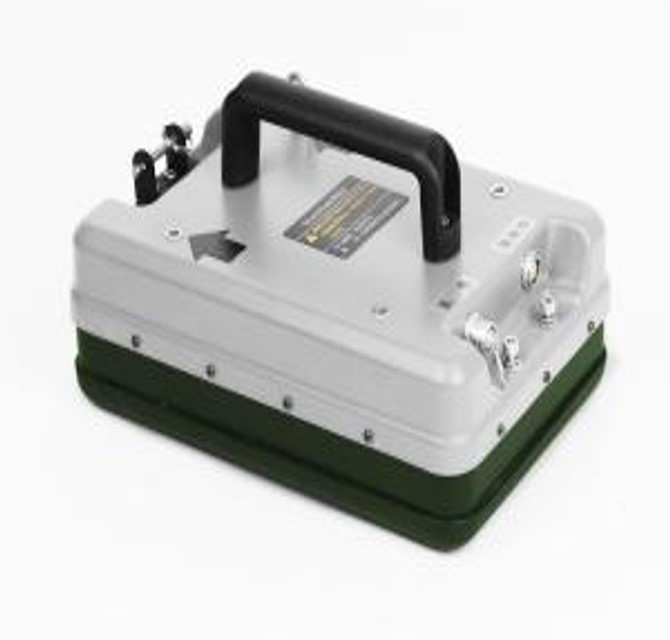

| Mammoth900 ground coupling antenna | |||
|---|---|---|---|
| Volume | 316mm×216mm×170mm | Weight | 2.3kg |
| Center frequency | 900MHz | The max launch frequency | 400kHz |
| Depth range | 0.5~1.5m | Coupling method | Ground coupling |
| Application | Tunnel lining, laying quality inspection, roadbed fail and harm inspection, building structure detection, etc | ||

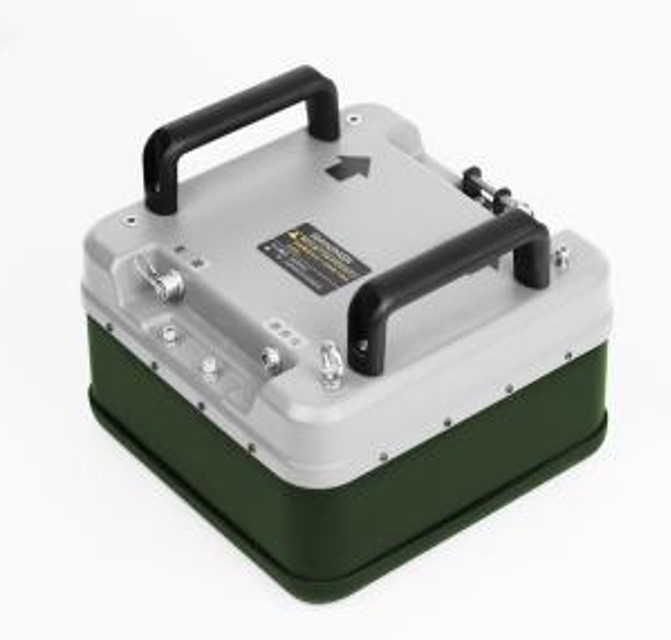

| Mammoth400 ground coupling antenna | |||
|---|---|---|---|
| Volume | 316mm×316mm×230mm | Weight | 3.6kg |
| Center frequency | 400MHz | The max launch frequency | 400kHz |
| Depth range | 1~4m | Coupling method | Ground coupling |
| Application | Tunnel lining, laying quality inspection, roadbed fail and harm inspection, city pipeline detection, water source and hydroelectricity engineering, etc. | ||
| Mammoth100 ground coupling antenna | |||
|---|---|---|---|
| Volume | 980mm×560mm×320mm | Weight | 13.6kg |
| Center frequency | 100MHz | The max launch frequency | 100kHz |
| Depth range | 1~30m | Coupling method | Ground coupling |
| Application | Tunnel geology outstrip early report, mineral survey, water source and hydroelectricity engineering, etc. | ||

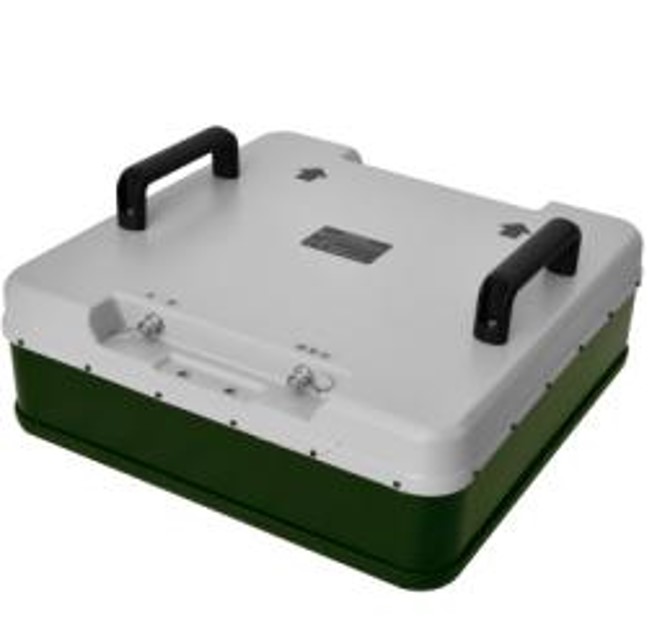

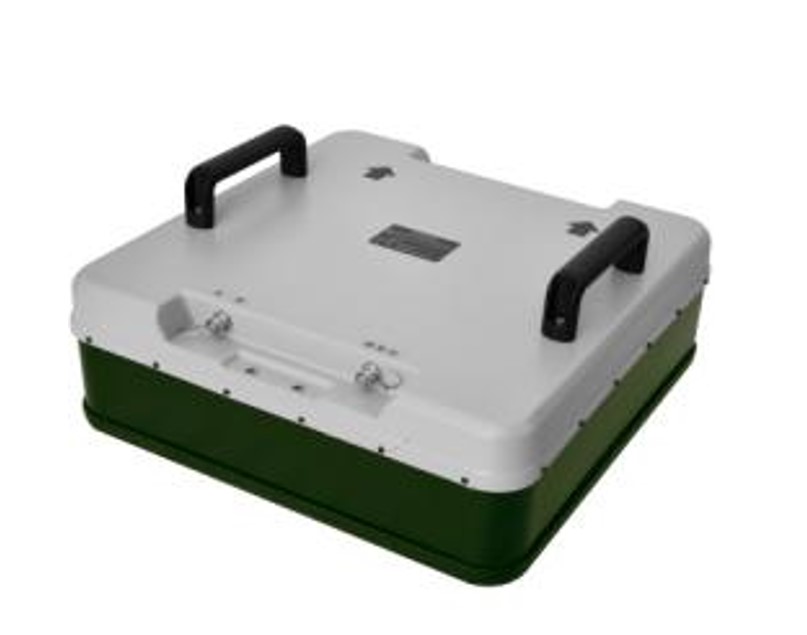

| Mammoth200 ground coupling antenna | |||
|---|---|---|---|
| Volume | 500mm×500mm×230mm | Weight | 6.4kg |
| Center frequency | 200MHz | The max launch frequency | 400kHz |
| Depth range | 1~4m | Coupling method | Ground coupling |
| Application | Tunnel lining, laying quality inspection, inverted arch quality inspection, city pipeline detection, water source and hydroelectricity engineering, roadbed fail and harm inspection, building structure detection, ground survey etc. | ||
