Induced Polarization (IP Instrument)
We are sales agent of high-quality equipment and professional sale support with expertise in the use of a wide range of geophysical equipment, Combining our survey experience with top-rated instruments provides the best value possible for our customers.
GDD Instrumentation is a world leader in high-tech geophysical instrumentation for mining and exploration geophysics, groundwater exploration, geotechnical investigations, and other related fields. GDD has developed, manufactured, and sold a wide range of Electromagnetic instruments, Resistivity/Induced Polarization instruments and Electrical Conductivity instruments.
GDD Instrumentation Products List
- Induced Polarization Transmitters
- Induced Polarization Receivers
- Sample Core IP Tester
- Magnetic Susceptibility and Conductivity Meter
GDD Instrumentation Products List
IP Transmitter
IP Receiver
SCIP Tester
MPP Probe
Induced Polarization Transmitters
Features:
- Resistivity and time domain IP survey
- User friendly and robust
- Shock resistant and environmentally sealed
- Protection against short circuits even at zero (0) ohms
- Displays electrode contact, transmitting power and current
- Applications: mining exploration, groundwater exploration, geotechnical investigations and other related fields
Models And Specifications:
TxIII
TxII

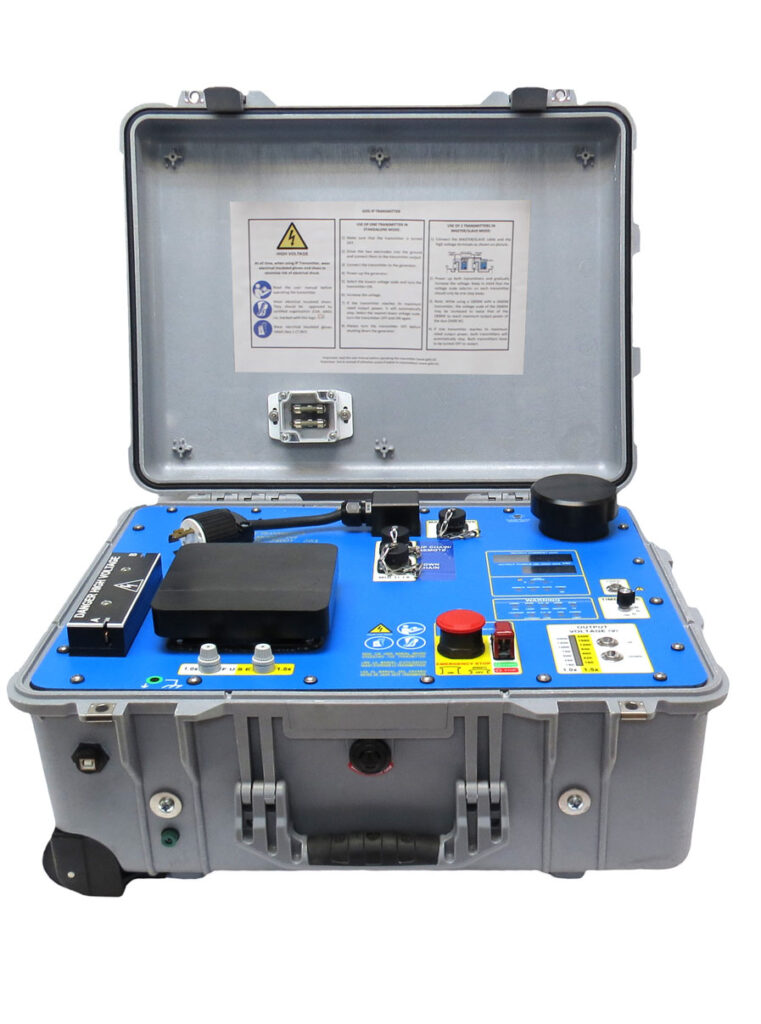

Tx4
| General Specification | 1800W-2400V-10A | 3600W-2400V-15A | 5000W-2400V-20A |
|---|---|---|---|
| Master-Slave configuration (2 Transmitters) | 3600W-4800V-10A | 7200W-4800V-15A | 10000W-4800V-20A |
| SPECIFICATIONS (PER TRANSMITTER) | |||
| Total weight (including accessories and shipping box) | 39 kg | 44 kg | 58 kg |
| Weight (transmitter only) | 27 kg | 32 kg | 40 kg |
| Total dimension (including accessories and shipping box) | 56 x 36 x 56 cm | 28 x 49 x 70 cm | 34 x 52 x 76 cm |
| Operating temperature | -40° C to +65° C (-40° F to +150° F) | ||
| ELECTRICAL CHARACTERISTICS | |||
| Time base | Time domain: ON+, OFF, ON-, OFF Time base: DC, 1, 2, 4, 8 et 16 seconds | ||
| Output current | 0.030A to 20A (standard operation) 0.0A to 20A (Open Loop protection | ||
| DC mode | Maximum of 5A | ||
| Output voltage | 150V to 2400V / 14 voltage scales | ||
| Master-Slave configuration | Ability to link 2 GDD IP Transmitters of 3,600W or 5,000W to double power (7,200W or 10,000W) and the output voltage up to 4,800V | ||
| LCD display | – Output current 0.001A resolution – Output power – Ground resistance (when the | ||
| Power source | Standard 110-120V / 50-60Hz (optional : 220-240V / 50-60Hz) | Standard 220-240V / 50-60Hz | |
Induced Polarization Receivers
Features:
- Resistivity and time domain induced polarization measurement
- 2D and 3D configuration: pole-dipole, dipole-dipole, pole-pole, Wenner, Gradient, Schlumberger and others
- Displays waveform, electrode contact, noise, Vp, IP decay curves, apparent resistivity and chargeability values, etc.
- Provide real time feedback
- Transfers data from PDA to your PC with an USB cable
- Applications: mining exploration, groundwater exploration, geotechnical investigations and other related fields
A new efficient way of collecting 3D Resistivity and Induced Polarization (IP) data for your geophysical ground surveys!
The 3D IP system in development will stand out in the world of geophysical industry with the ability to do quality control and analysis (QA / QC) of the data directly in the field for each of the GDD IP Receiver model.
Models And Specifications:

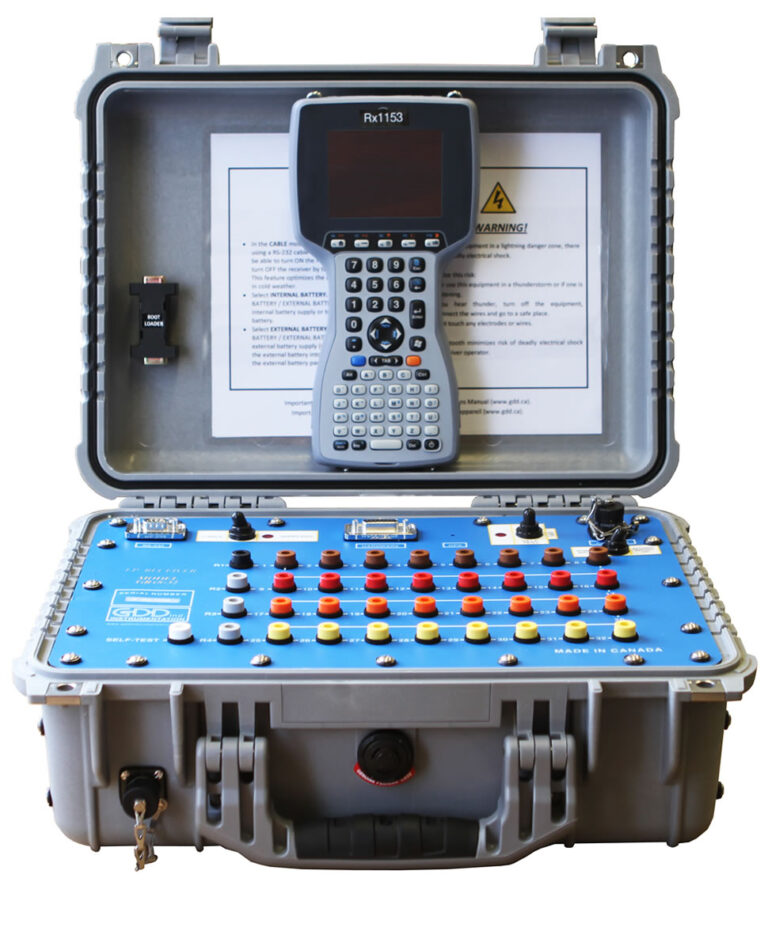

GRx8-32 8-10-16-24-32 channels

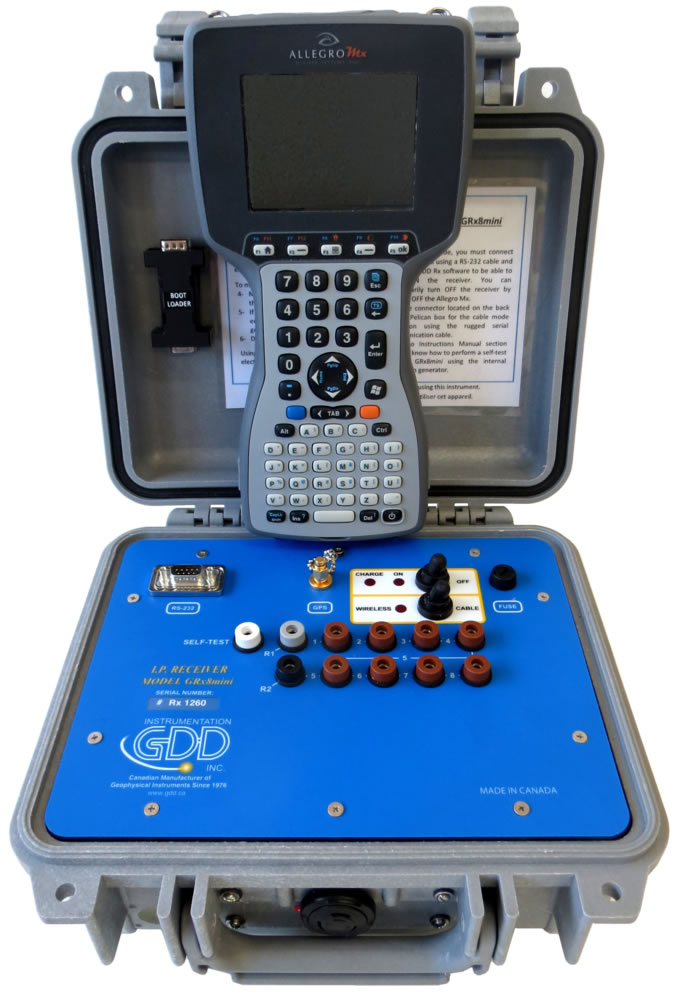

GRx8 Mini 8 channels

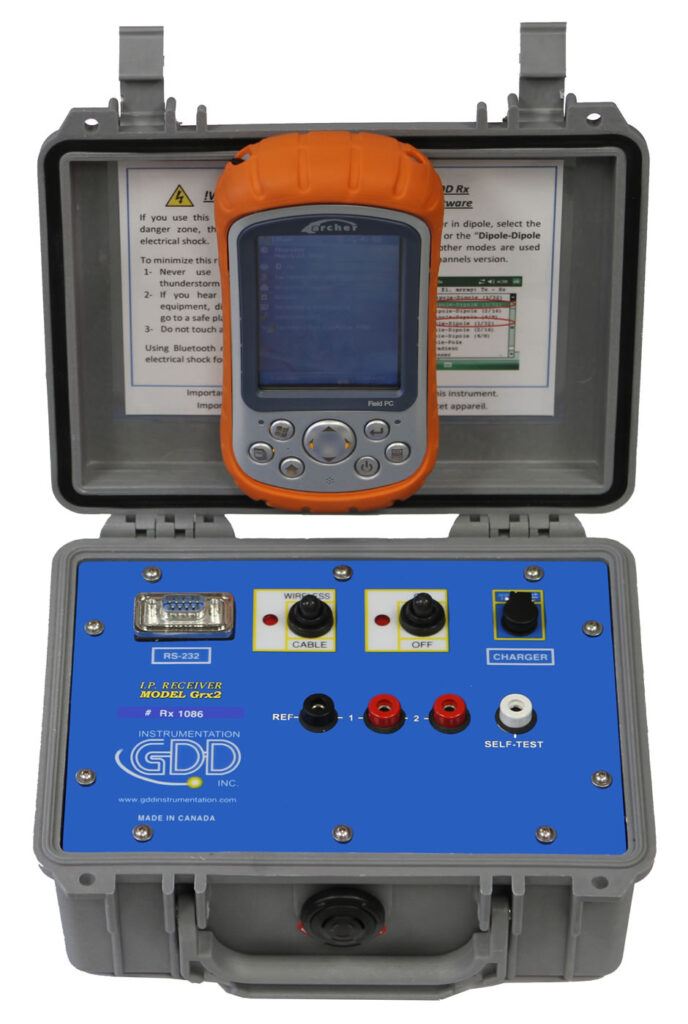

GRx2 2 channels
| General Specification | 1800W-2400V-10A | 3600W-2400V-15A | 5000W-2400V-20A |
|---|---|---|---|
| Master-Slave configuration (2 Transmitters) | 3600W-4800V-10A | 7200W-4800V-15A | 10000W-4800V-20A |
| SPECIFICATIONS (PER TRANSMITTER) | |||
| Total weight (including accessories and shipping box) | 39 kg | 44 kg | 58 kg |
| Weight (transmitter only) | 27 kg | 32 kg | 40 kg |
| Total dimension (including accessories and shipping box) | 56 x 36 x 56 cm | 28 x 49 x 70 cm | 34 x 52 x 76 cm |
| Operating temperature | -40° C to +65° C (-40° F to +150° F) | ||
| ELECTRICAL CHARACTERISTICS | |||
| Time base | Time domain: ON+, OFF, ON-, OFF Time base: DC, 1, 2, 4, 8 et 16 seconds | ||
| Output current | 0.030A to 20A (standard operation) 0.0A to 20A (Open Loop protection disabled) | ||
| DC mode | Maximum of 5A | ||
| Output voltage | 150V to 2400V / 14 voltage scales | ||
| Master-Slave configuration | Ability to link 2 GDD IP Transmitters of 3,600W or 5,000W to double power (7,200W or 10,000W) and the output voltage up to 4,800V | ||
| LCD display | – Output current 0.001A resolution – Output power – Ground resistance (when the transmitter is turned off, but plugged to the generator) | ||
| Power source | Standard 110-120V / 50-60Hz (optional : 220-240V / 50-60Hz) | Standard 220-240V / 50-60Hz | |

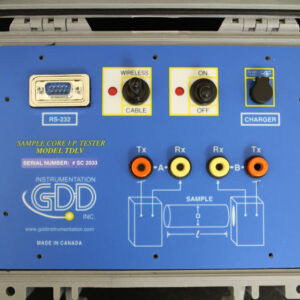

Sample Core IP Tester

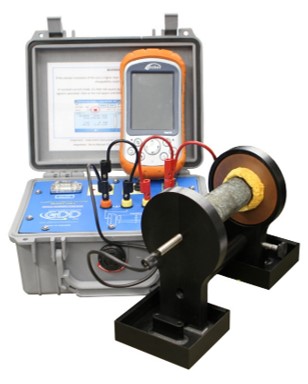

The Sample Core IP Tester (SCIP) manufactured by Instrumentation GDD Inc. is an innovative way to measure the electrical properties of drill cores, samples and outcrops.
The SCIP is a portable, reliable, battery-operated instrument for evaluating the resistive properties and IP response of your cores. With this instrument, you get the information that a geophysicist needs to design an appropriate geophysical survey. In other words, you can know if an IP survey would be appropriate. The SCIP will also help you to better define your IP inversion.
Features:
- Apparent resistivity and time domain induced polarization (IP) measurement
- User friendly and inexpensive
- Versatile: use your own core holders
- Transfers data from the PDA to your PC with an ISB cable
- Screen decay curve (IP)
- Provide real time feedback: direct calculation or resistivity and chargeability values
- Applications : mining exploration and other related fields
Now, you can use your SCIP with your Android devices.
The SCIP is a portable, reliable, battery-operated instrument for evaluating the resistive properties and IP response of your cores. With this instrument, you get the information that a geophysicist needs to design an appropriate geophysical survey. In other words, you can know if an IP survey would be appropriate. The SCIP will also help you to better define your IP inversion.
Models And Specifications:
SCIP Tester
| SPECIFICATIONS – SCIP TESTER | |
|---|---|
| Total weight (including accessories and shipping box) | 8 kg |
| Total dimension (including accessories and shipping box) | Total dimension (including accessories and shipping box) |
| Operating temperature | -30° C to +60° C (-22° F to +140° F) |
| Enclosure | Heavy duty Pelican case, environmentally sealed |
| Twenty chargeability windows | Arithmetic, logarithmic, semi-logarithmic, Cole and user defined |
| Noise reduction | Automatic stacking number |
| Main values read by the SCIP | Apparent resistivity (Ω*m), primary voltage (mV), primary voltage error (%), current (uA), chargeability and chargeability error (%) |
| Compatibility | Field device PDA Archer2 of Juniper Systems Inc. |
| ELECTRICAL CHARACTERISTIC IP TRANSMITTER | |
| Signal waveform | Time domain : ON+, OFF, ON-, OFF Time base : 0.5, 1, 2, 4, 8, 16, 32 and 128 seconds |
| Voltage mode (output selection) | 3, 6, 9, 12 V |
| Current mode (output selection) | 0.5, 5, 50, 500 µA |
| Max power | Voltage mode : 36 mW Current mode : 6.5 mW |
| IP RECEIVER | |
| Contact resistance | Up to 50 MΩ |
| Input impedance | >130 MΩ |
| Primary voltage | Up to ±13 V |
| Differential input | In dipole configuration |
| Filter | Eight-pole Bessel low-pass 15 Hz |
| Voltage measurement | Resolution 1 µV, accuracy 0.2% |
| Current measurement | Resolution 1 nA, accuracy 0.2% |
| Chargeability measurement | Resolution 1 µV/V, accuracy 0.38% |

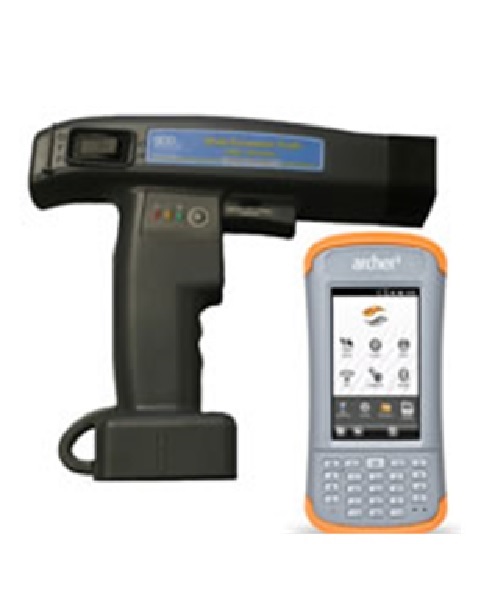

Magnetic Susceptibility And Conductivity Meter

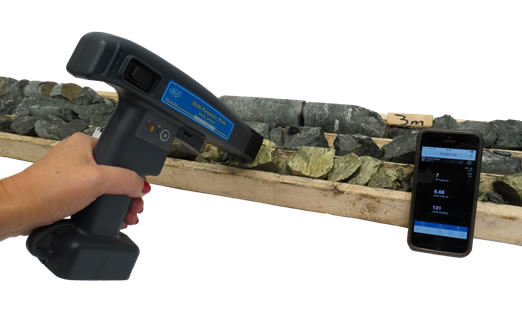

The MPP probe measures the magnetic susceptibility (10-3 SI) as well as the relative and absolute EM conductivity (MHOS/M) values of small and large objects such as drill cores, samples, outcrops, etc.
With the MPP probe, you can get the information that you need, to design an appropriate geophysical survey since you are able to establish a correlation between your samples and your EM / MAG survey.
Features:
- Magnetic susceptibility and
- EM conductivity measurement
- Relate your samples and drill cores to you EM/MAG survey
- Log physical core properties and positions in a PDA
- Fast results
- Robust and reliable
- Shock resistant, portable and weatherproof
- Wireless communication (Bluetooth) or with a serial cable (RS-232)
- Provide real time feedback
- Standard data file format in ASCII
- Applications: mining exploration, geophysical investigations and other related fields
Now, you can use your SCIP with your Android devices.
Models And Specifications:
MPP-EM2S+
| SPECIFICATIONS – MPP PROBE</th > | |
|---|---|
WEIGHT (MPP only / in Shipping Box) | 0.4 kg / 4.3 kg |
| Total dimension | 32 x 27 x 18 cm |
| PDA | Somo or Archer2 PDA (Jupiter Systems Inc.) |
| Reading modes | Punctual, continuous, manual, graphic and (single reading MPP-EM2S+ only) |
| Screen | Display real time magnetic susceptibility and EM conductivity reading |
| Sample rate | Up to 10 times per second |
| Displayed rate | Every 0.5 second |
